Description
- This option allows the electronics panel to be located up to 30 m (90’) away from the loudspeaker cabinet.

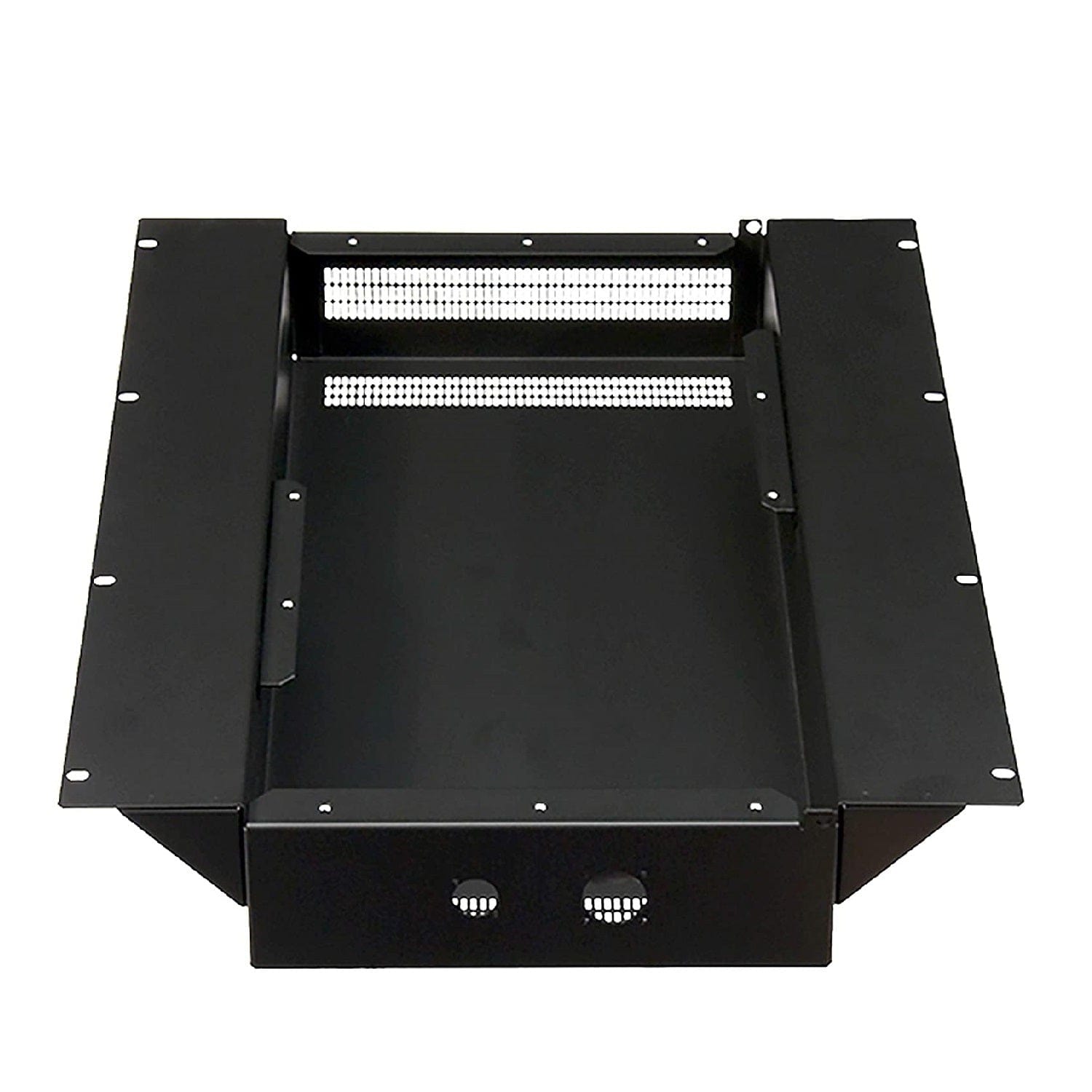

REK 4 - REMOTE ELECTRONICS KIT
This option allows the electronics panel to be located up to 30 m (90’) away from the loudspeaker cabinet.
The benefits enjoyed when loudspeakers are flush mounted are: lack of heat dissipation problems, easy adjustment of the controls, and easier electronics servicing. An 8-pole Speakon terminated cable carries the driver signals and a CAT-5 cable carries the display signals. Additional space is not required behind the cabinet as the connectors face downwards when installed.
Wire Gauge
Cable length up to 20 m (30’): 2.5 mm² (13 AWG)
Cable length up to 30 m (45’): 4 mm² (11 AWG)
 |
 |
 |
 |
 |
 |
 |
