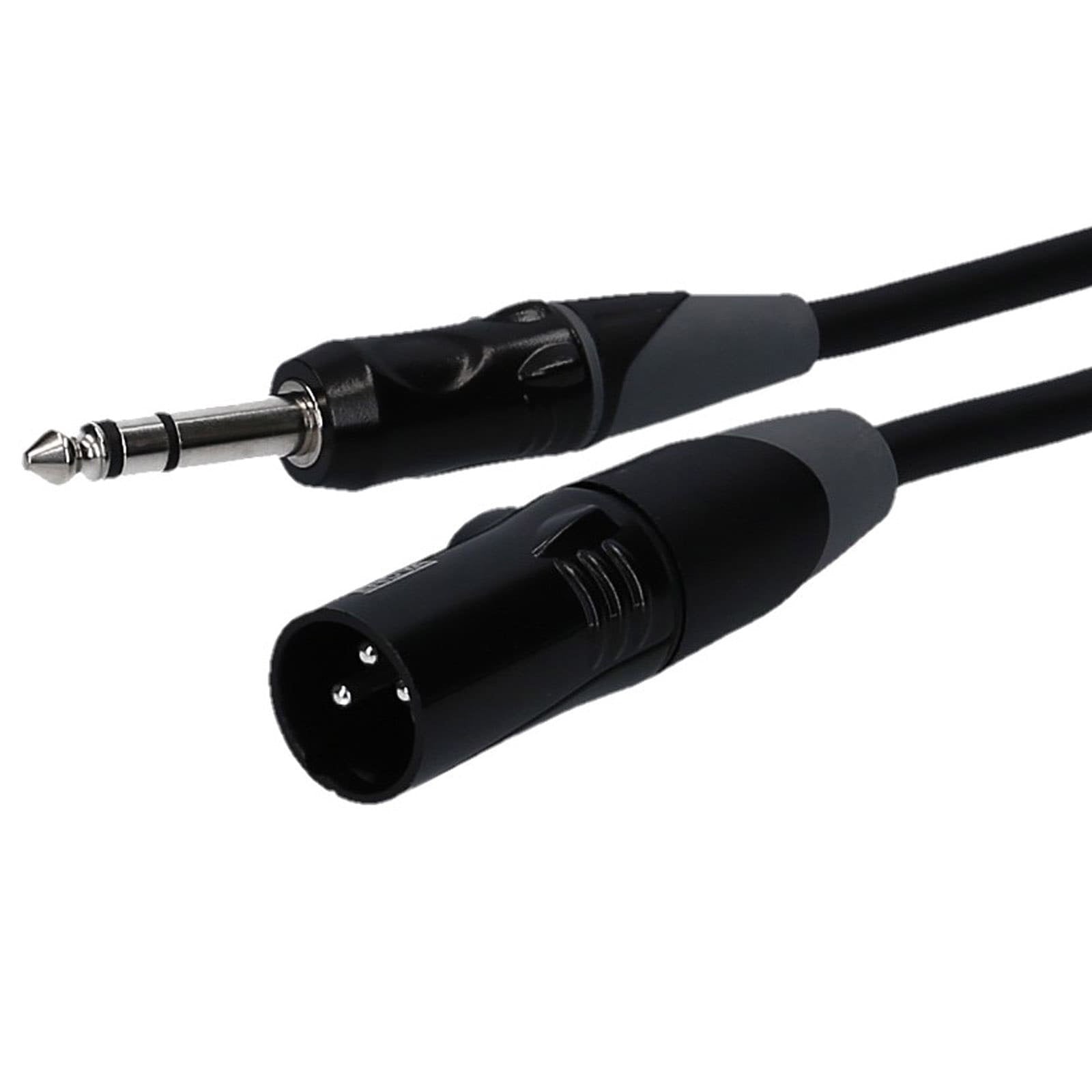

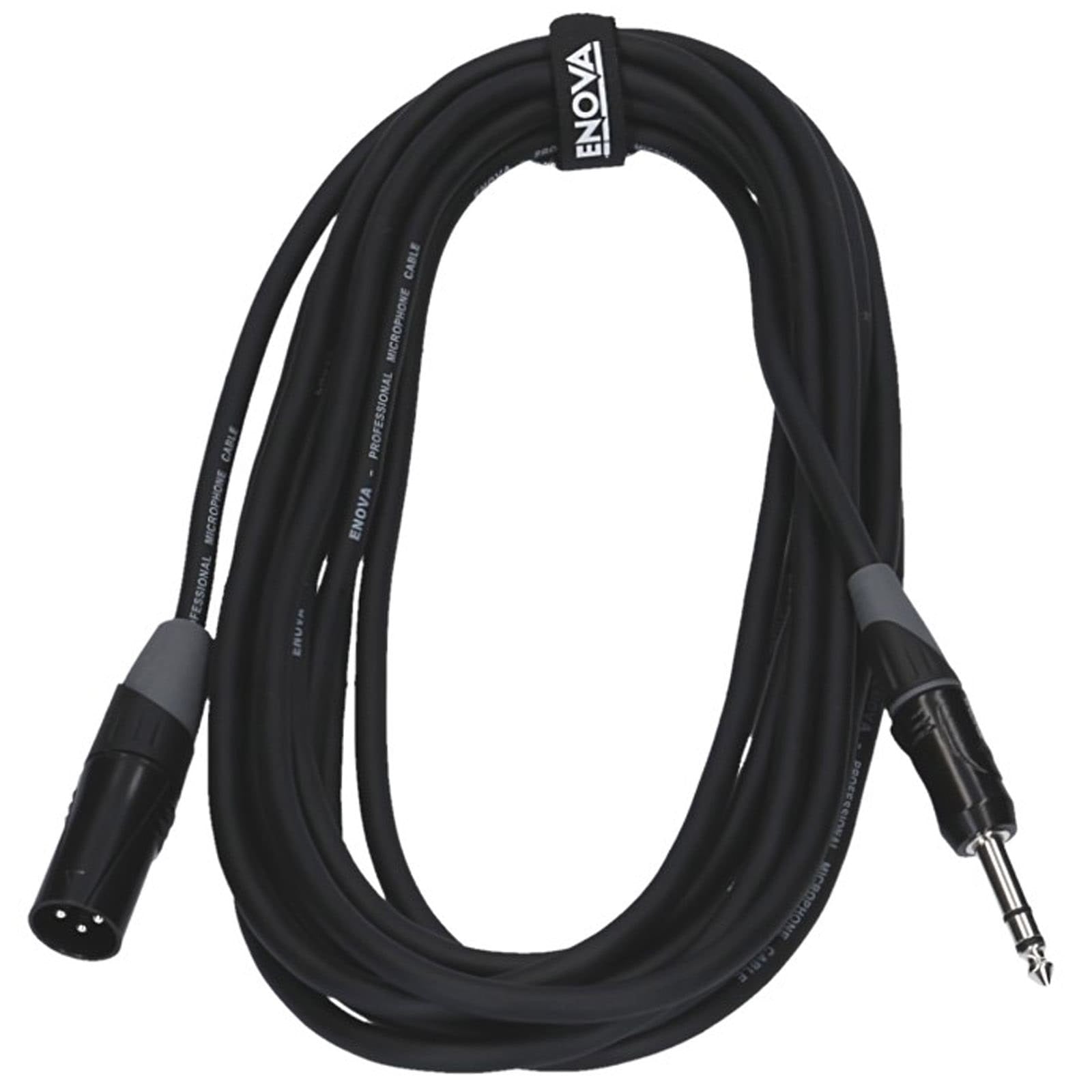

Connector side A: ENOVA XLR male 3-pin
Connector side B: ENOVA 1/4" jack 3-pin
Cable length: 7 meters
High-quality metal ENOVA XLR connectors with strain relief and cable bend relief for a clean cable outlet.
Professionally assembled microphone cables with additional insulation over each conductor at the solder contact. Handmade products are shipped with a 100% functional inspection.
The cable is designed for balanced audio connections for analog and digital AES /EBU signals suitable for up to 200 m.
The cable diameter is 6.5 mm. The outer jacket is flexible robust and black.
The conductor cross-section is 2 x 0.22 mm² (AWG 24 with 7x 0.20 mm strands) The conductors were produced with high-quality copper conductors OFC (Oxygen Free Copper).
The conductor insulation is made of FPE material and marked in blue and red colors. Flexible PolyEster (FPE) is a high-tech material that combines various properties such as strength, flexibility, and temperature resistance in one material.
The microphone cable has a shielding via a spiral shield.
The ENOVA Pro-Audio cable is suitable as a movable and mobile activity cable.
Cond. D.C.R. Ohm / 1km < 80
Shild D.C.R Ohm / 1km <30
Nom Cap (pF/m) between Conductors 52
Working temperature minus 20° C to plus 60° C.
| Series: | A1-Serie |
| Version (Plug / Chassis): | Cable Version |
| Connector type: | XLR, XLR male 3 pol, 1/4 Jack, 1/4 Jack 3 pol |
| Cable type: | XLR male - 1/4" Plug |
| Number of contacts: | 3 |
| Gender (M / F): | Kabel male auf male |
| Cable surface color: | Black |
| Cable length: | 7 meters |
| Cable diameter: | Ø 6.5 mm |
| Wire size: | Ø 24 AWG 0.22 mm |
| Working temperature minimum: | -20° |
| Working temperature maximum: | +60° |
| Applications: | DJ, Keyboard player, Singer, Sound engineer |
| AES EBU fits up to: | 200 m |
