Vendor: Enova
Couldn't load pickup availability

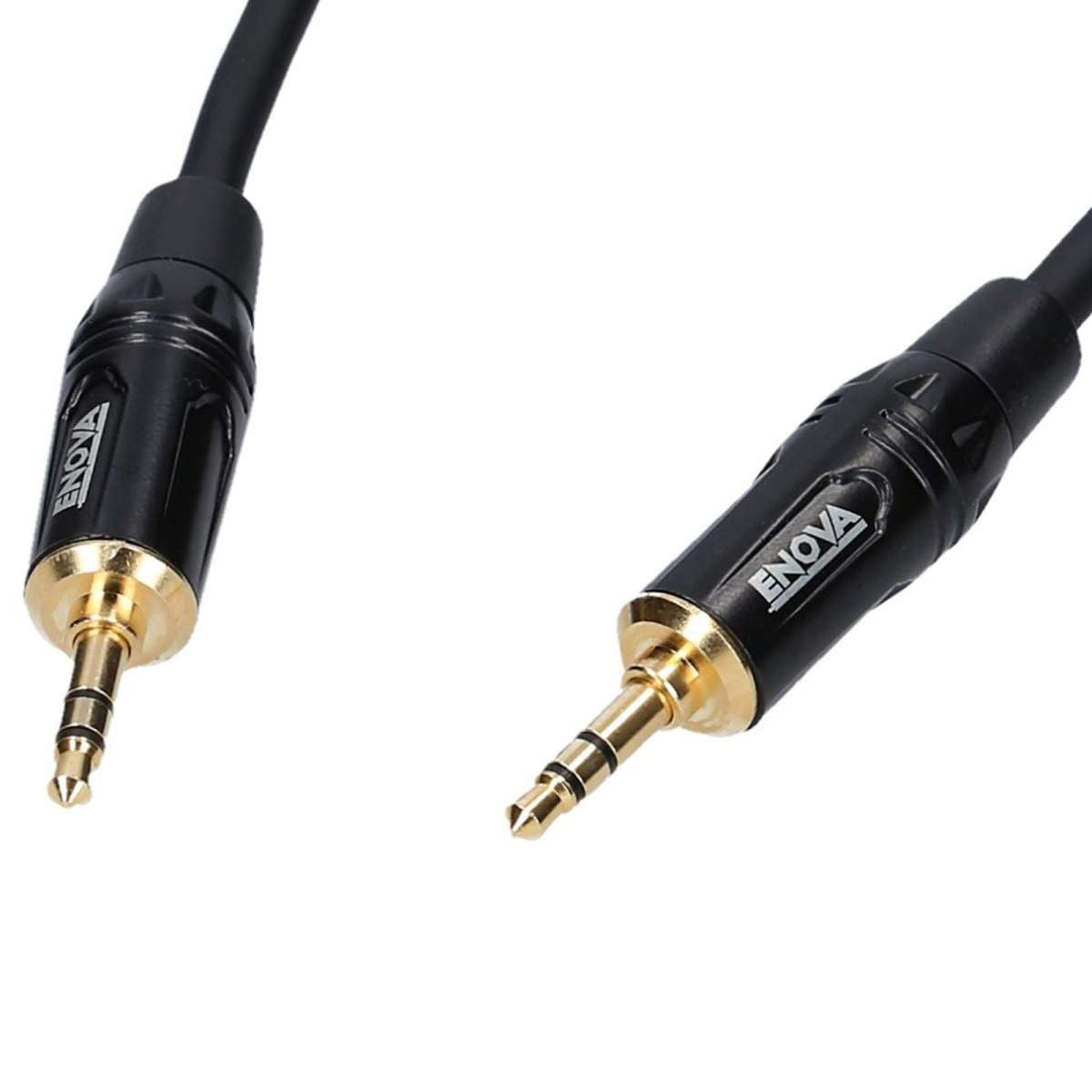

Plug side A: ENOVA 3.5mm jack 3 pin
Plug side B: ENOVA 3.5mm jack 3 pin

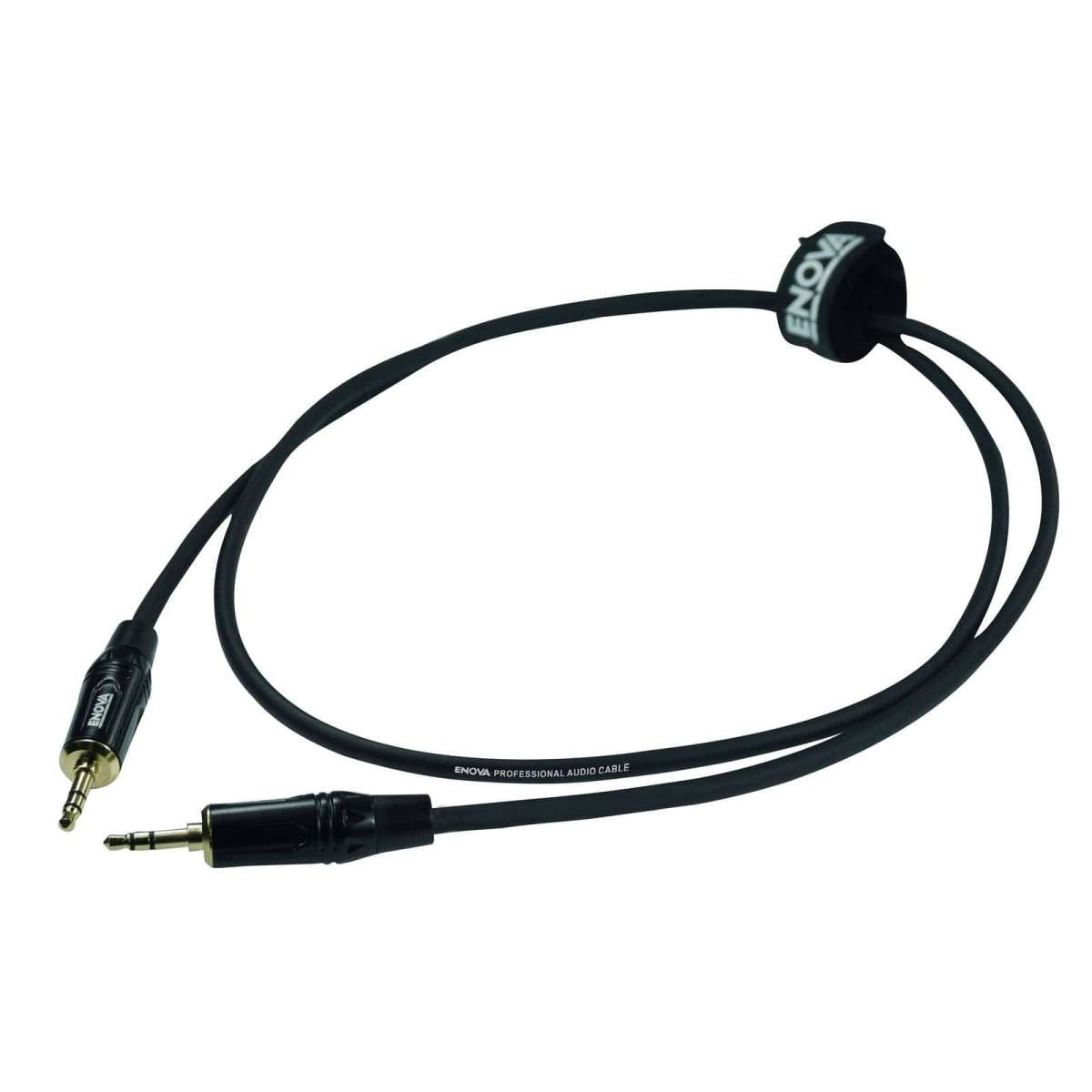

Cable length: 3 meters
Highly flexible balanced analog & AES / EBU audio cable. Ideal as a patch cord or mobile activity cable.
The cable diameter is 4.6 mm. The outer jacket is flexible robust and black.
The symmetrical patch cable has a shield via a spiral shield.
The strands are 2x 26 AWG 0.14 mm
Cond. D.C.R. Ohms / 1km <125
Nom Cap (pF / m) between Conductors 50
Working temperature minus 20 ° C up to plus 60 ° C.
The strands are 2x 26 AWG 0.14 mm
Cond. D.C.R. Ohms / 1km <125
Nom Cap (pF / m) between Conductors 50
Working temperature minus 20 ° C up to plus 60 ° C.
| Series: | A2-Serie |
| Version (Plug / Chassis): | Cable Version |
| Connector type: | 1/8 Jack, 1/8 Jack 3 pol |
| Cable type: | 1/8" Plug - 1/8" Plug |
| Number of contacts: | 3 |
| Gender (M / F): | Kabel male auf male |
| Cable surface color: | Black |
| Cable length: | 3 meters |
| Cable diameter: | Ø 4.6 mm |
| Wire size: | Ø 26 AWG 0.14 mm |
| Working temperature minimum: | -20° |
| Working temperature maximum: | +60° |
| POS packaging: | Yes |
| Sleeve size: | Small Audio Sleeve 109 mm x 60 mm |
| Applications: | DJ, Keyboard player, Sound engineer |
| AES EBU fits up to: | 200 m |
