Vendor: Enova
Couldn't load pickup availability

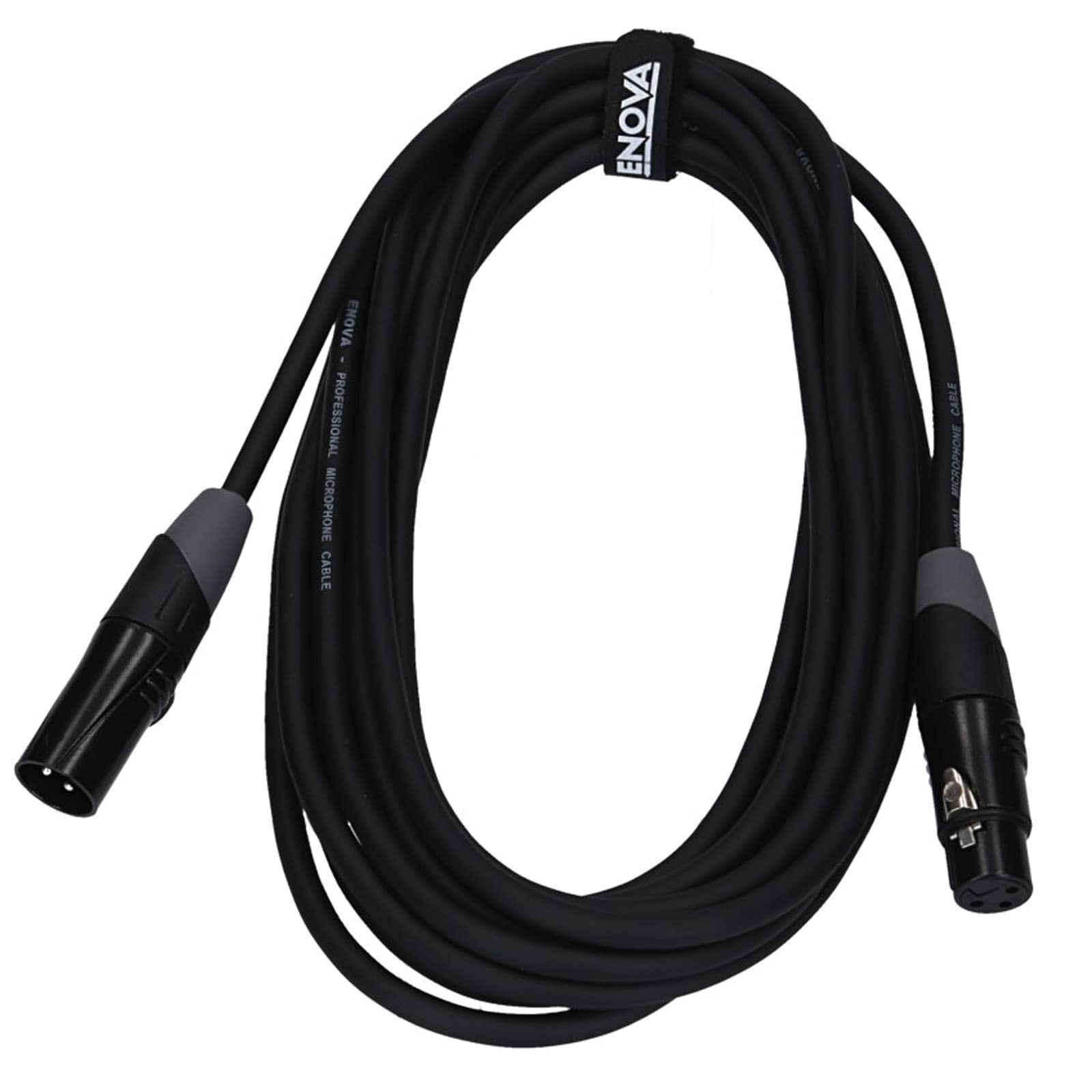

Connector side A: ENOVA XLR female 3-pin
Connector side B: ENOVA XLR male 3-pin
Cable length: 1 meter

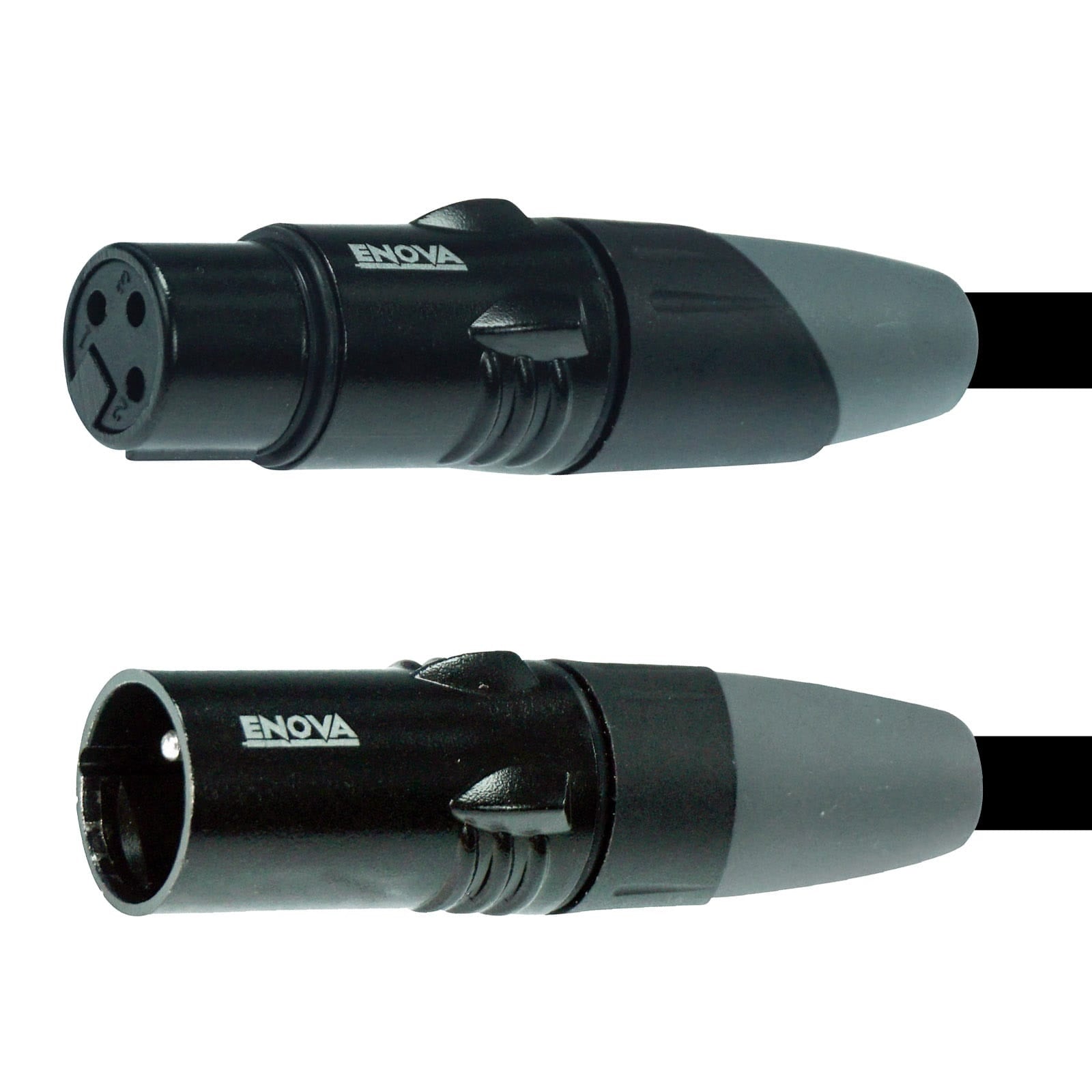

High-quality ENOVA XLR connectors made of metal with strain relief and boot for a clean cable outlet.
Professional, assembled microphone cables with additional insulation over each conductor at the solder contact. The hand-made products are delivered with a 100% functional check.
The cable is designed for symmetrical audio connections for analog and digital AES / EBU signals suitable for up to 200 m.
The cable diameter is 6.5 mm. The outer jacket is flexible robust and black.
The conductor cross-section is 2 x 0.22 mm² (AWG 24 with 7x 0.20 mm strands) The conductors were produced with high-quality OFC (Oxygen Free Copper) copper cables.
The conductor insulation is made of FPE material and is marked in blue and red. Flexible PolyEster (FPE) is a high-tech material that combines various properties such as strength, flexibility, and temperature resistance in one material.
The microphone cable is shielded by a spiral shield.
The ENOVA DMX cable is suitable as a flexible and mobile activity cable.
Cond. D.C.R. Ohm / 1km <80
Shild D.C.R Ohm / 1km <30
Nom cap (pF / m) between conductors 52
Working temperature minus 20 ° C to plus 60 ° C.
| Series: | A1-Serie |
| Version (Plug / Chassis): | Cable Version |
| Connector type: | XLR, XLR female 3 pol, XLR male 3 pol |
| Cable type: | XLR female-male |
| Number of contacts: | 3 |
| Gender (M / F): | Kabel female auf male |
| Cable surface color: | Black |
| Cable length: | 1 meter |
| Cable diameter: | Ø 6.5 mm |
| Wire size: | Ø 24 AWG 0.22 mm |
| Working temperature minimum: | -20° |
| Working temperature maximum: | +60° |
| Applications: | DJ, Keyboard player, Singer, Sound engineer |
| AES EBU fits up to: | 200 m |
